Rolec ROLEC5011 Evo Intelligent EV Charger 7.4kW Universal Socket Daytona Grey c/w EVPP0700 5m 32A Type 2 to Type 2 Charging Lead & Holster

Rolec ROLEC5011 Evo Intelligent EV Charger 7.4kW Universal Socket Daytona Grey c/w EVPP0700 5m 32A Type 2 to Type 2 Charging Lead & Holster

EVO Intelligent EV charging unit

TThe EVO charging unit is an affordable, compact, and stylish EV charging solution designed for both drivers and installers.
Available in 7.4kW and 22kW models, it offers an easy-to-use, fully compatible charging solution for all EVs and PHEVs.
EVO also supports solar integration, allowing users to activate Eco+ mode, which only allocates any available surplus solar power to the vehicle for a 100% renewable, cost-free charge.
With the EVO app, users have full control of their charger including the ability to set charging schedules and integrate with smart tariffs to save on off-peak rates. Alternatively, users can connect their charger to any OCPP app of their choice.
EVO ensures a seamless charging experience, keeping EVs ready for their next electrified adventure.

UP TO 22KW – Available in both single phase and three phase models, providing up to 22kW superfast charging. EVO is compatible with all EVs & PHEVs, charging at the fastest speed possible, ensuring vehicles are ready to go in no time.

EASY CONFIGURATION – Installers can easily configure and test the EVO, and any other chargepoint in the ROLEC EV product range, by using the ROLEC CONNECT app. Simply follow the step-by-step process.

LOAD BALANCING – Utilising the latest EV technology, the EVO supports dynamic load balancing, which integrates into your home electrical system and reduces peaks in your energy usage by intelligently adjusting power output depending on your household’s energy consumption.

SOLAR COMPATIBLE – EVO offers three charging modes; ECO uses solar by day and scheduled grid power at night for cheaper charging ECO+ uses only surplus solar energy to charge Charge Now offers a maximum charge at any time.

5YEAR WARRANTY – ; ECO uses solar by day and scheduled grid power at night for cheaper charging ECO+ uses only surplus solar energy to charge Charge Now offers a maximum charge at any time 5YEAR WARRANTY EVO comes with a 5 year warranty as standard, for added peace of mind on your investment. Over-the-air updates allow the chargers to receive the very latest features, ensuring a safe and future-proof product 24/7.

Features:

• Plug & go, mobile app or RFID controlled charging
• Universal charging socket
• Up to 7.4kW or 22kW charging output
• Free ROLEC EVO mobile app
• 2x EVO RFID charging cards included
• Scheduled / off-peak charging
• Surplus solar charging compatible
• PME fault detection* (no earth rod required)
• Dynamic load balancing (CT clamp & cable included**)
• Three to Single Phase switching (22kW model only)
• OCPP 1.6 compliant (integrates with any chargepoint management system)
• AC 30mA Type-A and DC 6mA protection
• Built-in LED charging status indicator
• UK Smart Charge Point Regulations Compliant including tamper security
• 4G (22kW model only) / Wi-Fi / Ethernet connectivity
• Strong and durable IP54 / IK10 rated
• Corrosion and fire resistant
• Wall or post mounting options
• OZEV grant fundable (UK only)

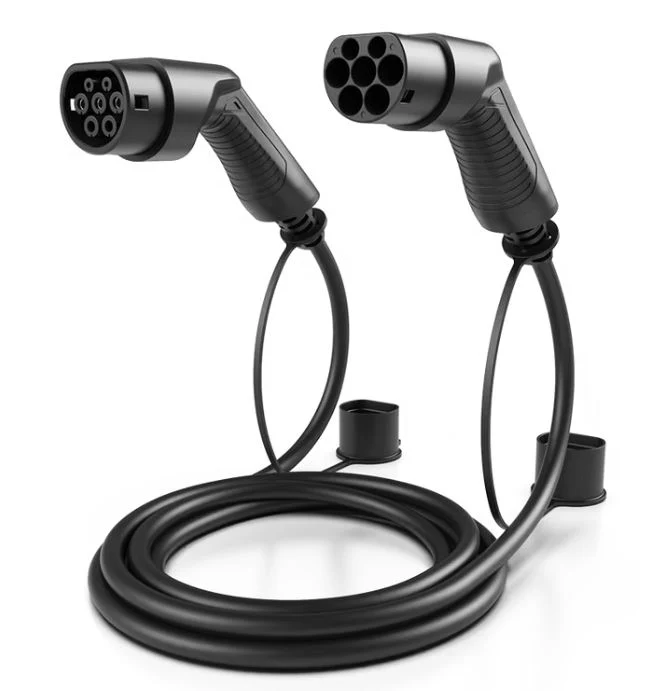

• 5m 32A Type 2 to Type 2 charging cable
• Remote wall mount for Type 2 charge gun holster

Specifications:

• Connection Type: 1x Universal charging socket
• Charging Output: Up to 7.4kW (32A)
• Input Supply: 1x Up to 32A Single Phase* 230V AC (±10 %) 50/60Hz
• Colour: Daytona Grey

Data Sheet:

Data Sheet for EVO Intelligent EV Charging Unit

Instruction Manual:

Instruction Manual for EVO Intelligent EV Charging Unit
